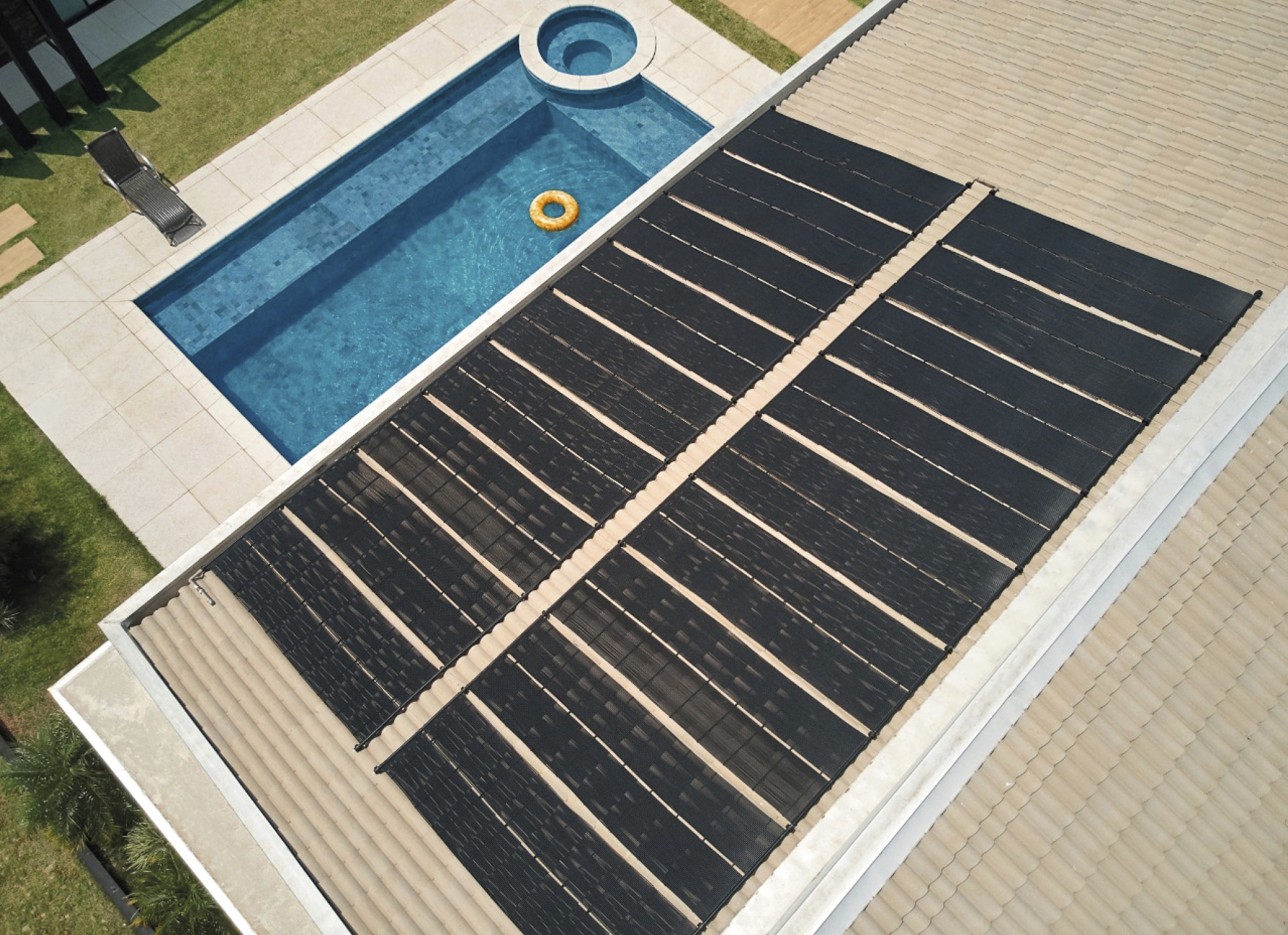

Solar Heater Vibea 3x1

The VIBEA solar heaters were designed to extend the season of use of the pool, using solar energy for this.

They are responsible for capturing solar energy and transforming it into thermal energy, transferring that thermal energy to the pool water, thus carrying out heating.

The VIBEA pool solar collector, is a product totally developed in polypropylene with additives that guarantee durability, resistance and total use of a renewable and non-polluting energy source, they were developed to heat large volumes of water with maximum savings. Manufactured with reliable, efficient products and mainly thinking about preserving the environment, either saving energy or using clean materials and processes that are not aggressive to the environment and people.

The solar collector is manufactured with 100% virgin raw material (polypropylene) and has unique characteristics that are:



- Easy to install due to the use of joint at the ends;
- Resistant to working pressure up to 40 M.C.A (4.0 bar);
- Resistant to weather and chemicals contained in the pool water;
- Nontoxic raw material;
- Large absorption area;
- No risk of corrosion.

Technical Data:

  MODEL
FEATURE UNIT VIBEA 3X1
MATERIAL - POLYPROPYLENE
COLOR - BLACK
LENGTH mm  3000
WIDTH mm  945
HEIGHT mm  9,00
AREA 2,80
NUMBER OF TUBES -  83
CONNECTOR OUTER DIAMETER mm 32,0
WORKING PRESSURE  M.C.A. (bar)  40 (4,0)
EMPTY WEIGHT kg 6,379
WEIGHT FULL WITH WATER kg 15,159
